Current and voltage transformer |
For details please click on the symbol! |
Symbol | Code | Max. cable diameter / bus bar | Primary current |
![]() |
MAC / MAT |
NEW ! Multi-range Current Transformer with integrated Measuring Transducer Output: 4..20mA D.C. |
20 - 6000A |
INFO | General informaion about our current transformer | ||
![]() |
TAT22 |
![]() |
60 - 600A |
![]() |
TAC17 |
![]() |
30 - 200A |
![]() |
TAC22 |
![]() |
40 - 250A |
![]() |
TAC32 |
![]() |
100 - 600A |
![]() |
TAC33 |
![]() |
60 - 600A |
![]() |
TAC40 |
![]() |
100 - 1000A |
![]() |
TAC53 | 2x50x10mm | 250 - 1500A |
![]() |
TAT61 | 2x60x10mm | 300 - 2000A |
![]() |
TAT81 / TAT82 | 2x80x10mm | 400 - 2500A |
![]() |
TAT84
|
2x80x10mm | 200 - 2500A |
![]() |
TAT101 | 3x100x10mm | 400 - 2500A |
![]() |
TAT126
|
2x120x10mm | 400 - 4000A |
![]() |
TAT127 | 3x120x10mm | 800 - 4000A |
![]() |

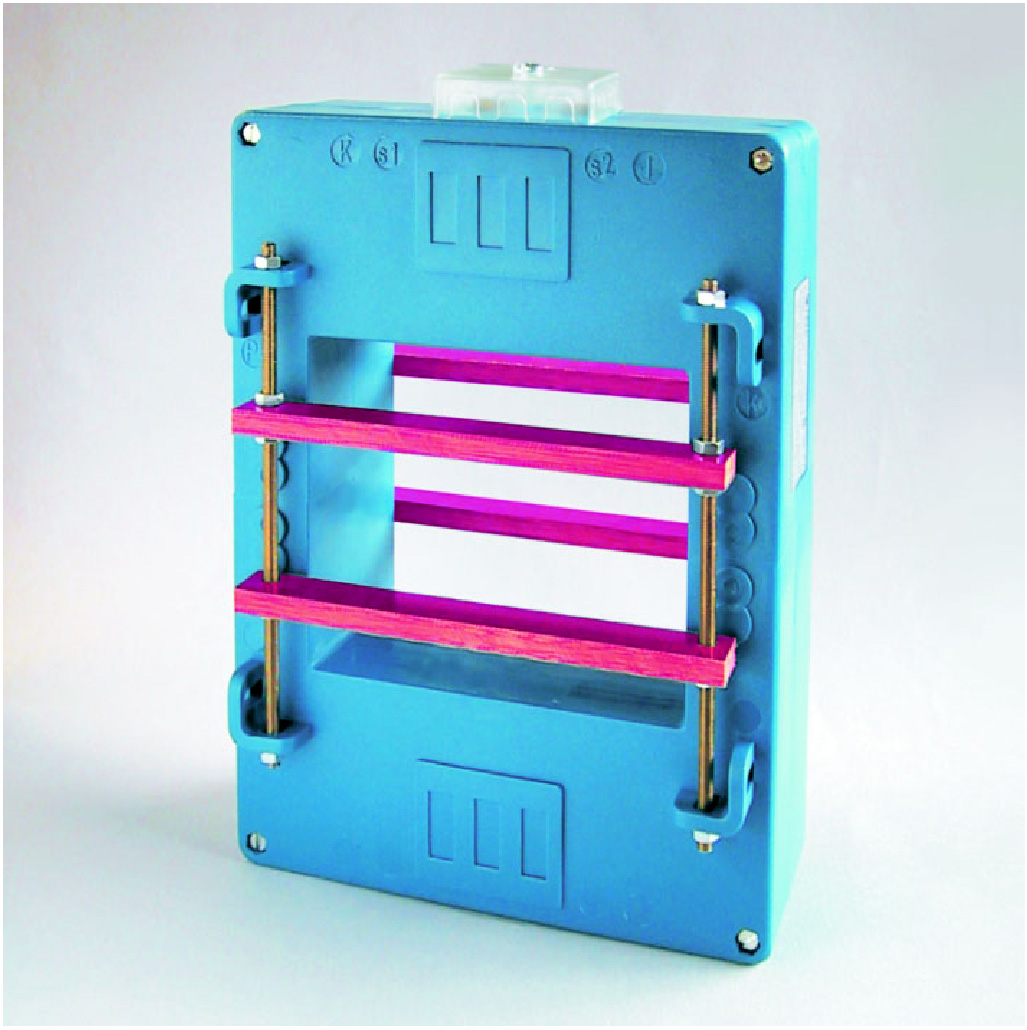

TAT128 | 4x120x10mm | 1000 - 4000A |
![]() |
TAT129 | 5x120x10mm | 1000 - 6000A |
![]() |
TAT165 | 6x160x10mm | 1000 - 8000A |
![]() |
TAT225 | 6x220x10mm | 1000 - 10000A |
![]() |

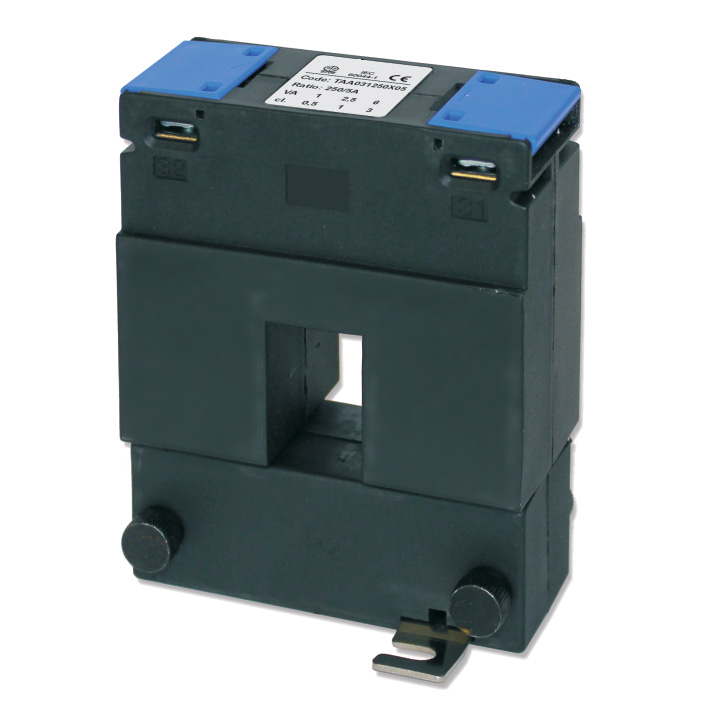

TAA031 |
Split core current transformer: window 32x21mm |
100 - 400A |
![]() |

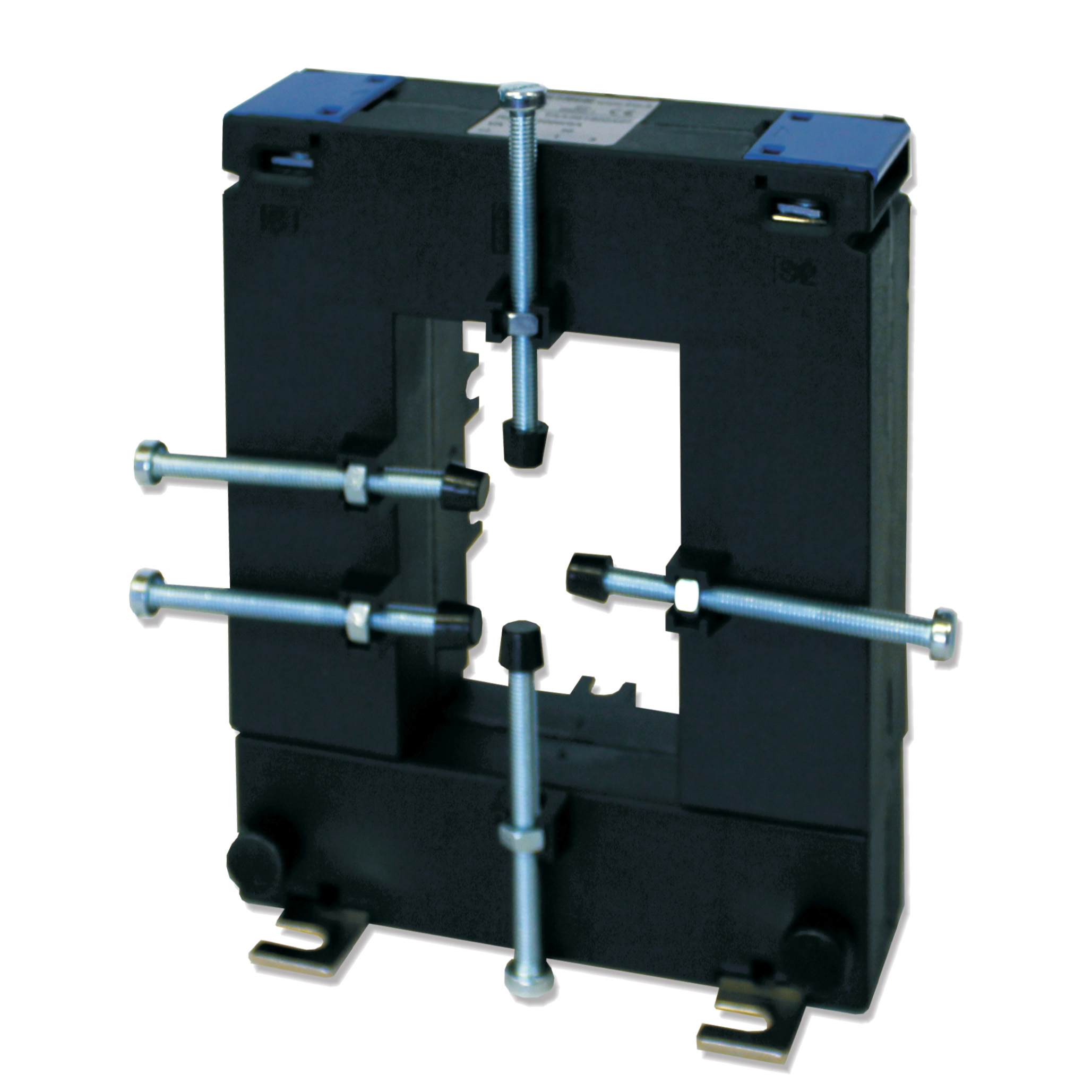

TAA081 |
Split core current transformer: window 81x50mm |
250 - 1000A |
![]() |
TAA121 |
Split core current transformer: window 121x80mm |
800 - 1500A |
![]() |
TAA161 |
Split core current transformer: window 161x80mm |
1000 - 5000A |
![]() |
TAC5 |
Wound Current Transformer |
1 - 100A |
![]() |
TAC10 | Wound Current Transformer | 1 - 400A |
![]() |
TAC20 | Wound Current Transformer | 1 - 600A |
![]() |
TASC10 |
Summation Current Transformer for Current Transformers of same or different Ratio |
|
Symbol | Code | Primary voltage range | possible sec. voltages |
![]() |
TTV6 | 100V - 500V | 100V, 110V, 100V/3, 110V/3,
110V/ |
![]() |
TTV10 | 100V - 500V | 100V, 110V, 100V/3, 110V/3,
110V/ |
![]() |
TTV20 | 100V - 1000V | 100V, 110V, 100V/3, 110V/3,
110V/ |
![]() |
TTV50 | 100V - 1000V | 100V, 110V, 100V/3, 110V/3,
110V/ |
![]() |
TTV100 | 100V - 1000V | 100V, 110V, 100V/3, 110V/3,
110V/ |
